<주요구성>
1. Main frame/structure(robot)
2. Heating unit
3. Cooling unit
4. Mould mounting unit
5. S/W
<주요성능>

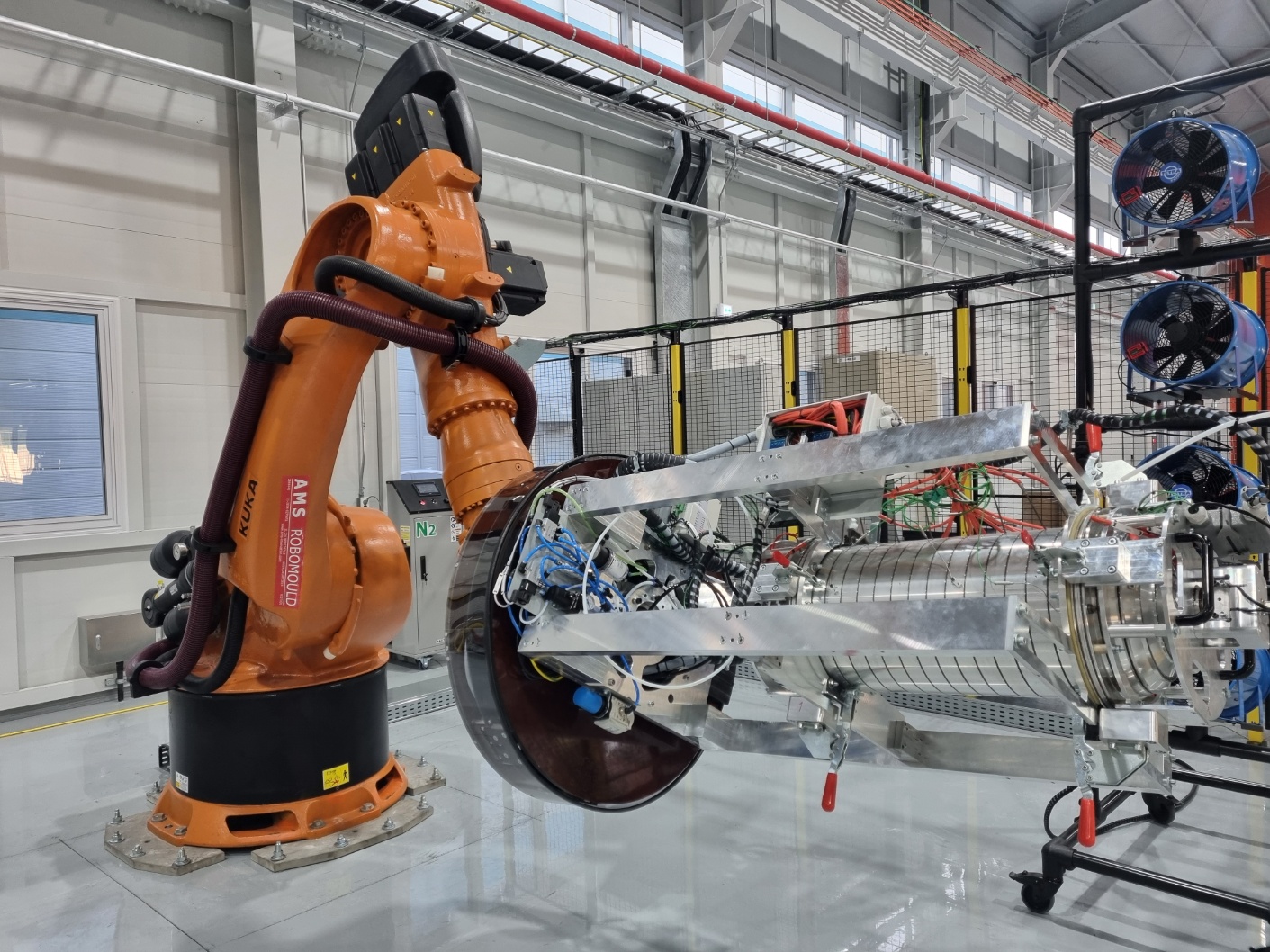

1. Main frame/structure(robot)
- Fully operational system with 6 axies, KUKA cabinet with CNC control
- Automatic operations
: Mould temperature control through the thermal cycle required for moulding operations
Speed control and axis rotation inversion, according to the recipe set
- Manual operations
: Powder weighting and dosing, Mould closing and opening, Unloading of the moulded part, Parts removal
- Motion type : Rock & Roll
- Parts size(liner) : Max 500mm(D)x2,000mm(L)
- Max. total modules/weight : 500kg
2. Heating unit
- Electrical heating iwires
- 24 electrical heating zone
3. Cooling unit : 2 stations
- One station consist of 4 air fans mounted on a craddle.
4. Mould mounting unit : Pancake system
- Slip rings to transfer the heating power
- Rotoglyde : 2 channels for air(or N2) or vacuum supply to the mold
5. S/W : SMARTPAD HMI language (Ver. 2023Q1)
