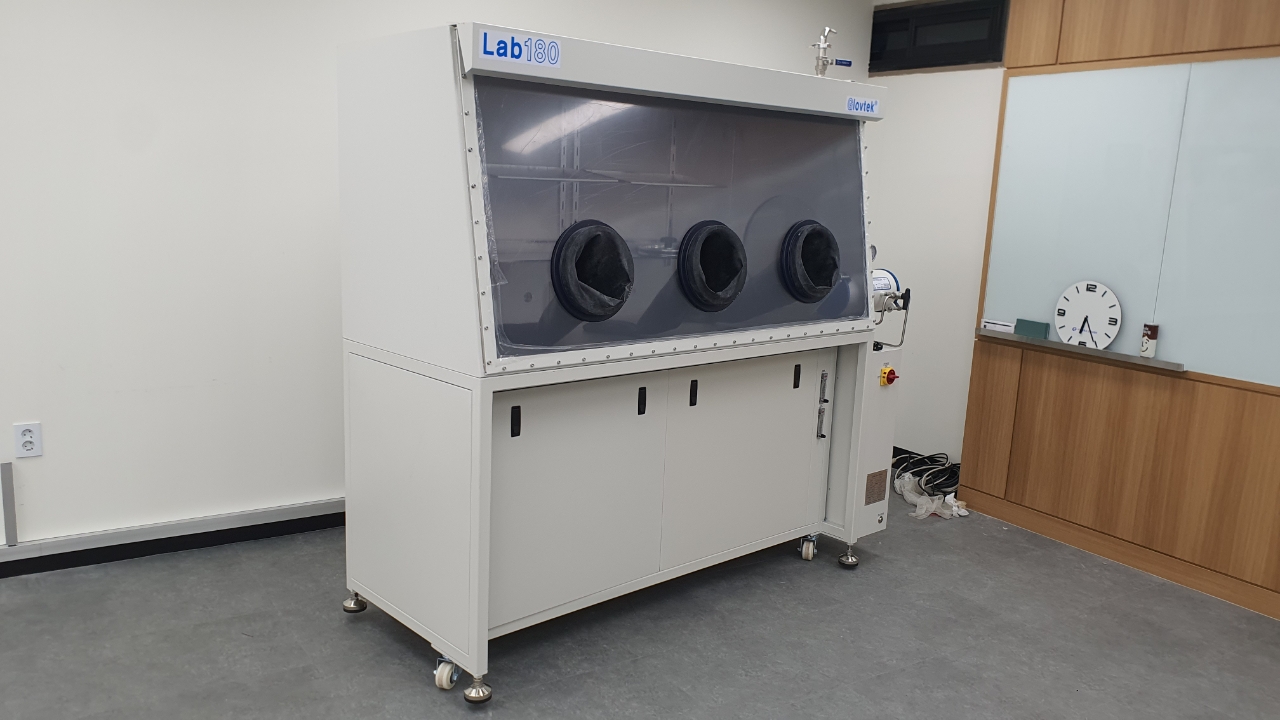

- Single length and Single Sided (3-Port):
1,800 (W) X 900 (H) X 780 (D) mm
- Modular structure with elastomer gasket front panel
- Material: SUS 304 Stainless Steel, Main body: 4 mm thick
- Height Adjustable Shelves
- Side end panel: 4 mm thick, 0.3 micron filter: 2 ea.
- LED Lamp
- 9”Glove Port (M/C): 3 ea.
Butyl Gloves (8“ dia. 0.4 mm (15 mil) thickness): 1.5 pair
- Window: 10 mm thick, Scratch & High impact Resistance Polycarbonate Window
- Electrical Outlet (1 ea.): 230V/50Hz x 4 receptacle x 15A
- Glove Port cover: Protect atmosphere during glove replacement.
- Service port feedthrough: 3 X KF40 flange and ports, 1/4” 1 ea. and 3/8” ea.
- Manual purge vent valve with KF Flange NW25
- Leakage Certification : No detectable leak at 17 mbar with Helium spectrometer calibrated and < 0.001 Vol%/Hour (ISO 10648-2
