Frequency Range : 140 GHz – 220 GHz

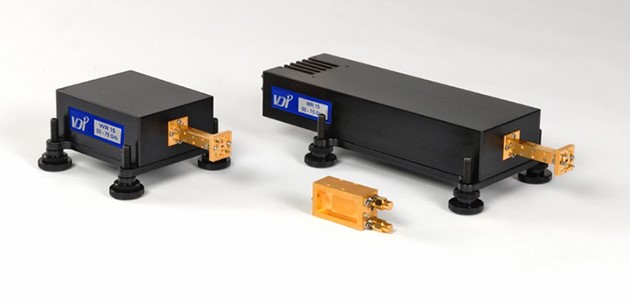

Full Transceiver Module
Dynamic Range : Min. 110 dB
Magnitude Stability : ±0.25 dB
Phase Stability : ± 4 degrees
Test Port Input Limit : 30 dBm
Tset Port Power : Typical 6 dBm
Directivity : Typical 30 dB
RF Input : Low Freq; 10 dBm ± 3 dB / 16 dBm (Typical / Damage), 2.9 mm connector, High Freq; 0 dBm ± 3 dB / 6 dBm (Typical / Damage), 2.4 mm connector
LO Input : 10 dBm ± 3 dB / 16 dBm, 2.9 mm connector
IF Outputs : Direct Connection (279 MHz) -9 dBm, Controller (7.6 MHz) -21 dBm
Test Port : VDI Precision Flange WR-5.1
AC Input : 100-240 VAC, <3.5 A, 50-60 Hz
DC Output : 9V/4A
RF Attenuation : User Controlled Attenuation, BNC connector
Typical Dimensions : 8.5 x 3.0 x 1.5 Inches
Typical Weight : 4 lbs
