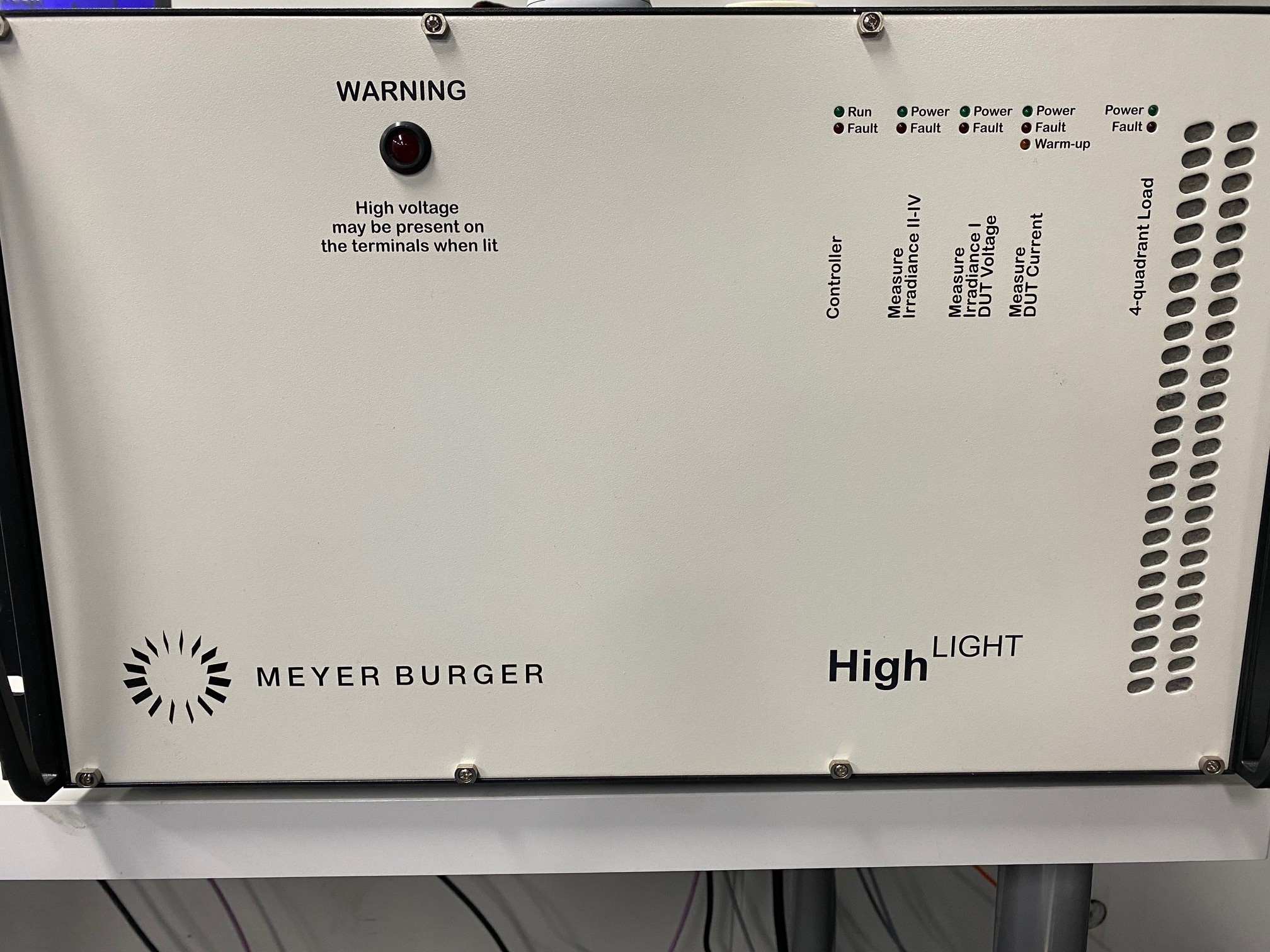

가. 모델명 : HighLIGHT VLMT

나. 특징
1. 광조사 면적 : 3000*3000 [mm]
2.광학강도 : Standard: 700-1200 W/m2 / 100-1200W/m2 with optional masks
3. Class : A+A+A+를 만족

다. 사양
1. Light source
-Class : A+A+A+
-Spectral match : 0.875 - 1.125 (A)
-Non-uniformity : <1% (A+)
-Long term instability : <1% (A+)
-Type : Xenon
-Xenon lifetime : 60’000 flashes guaranteed
-Illuminated area : 3000*3000 [mm]
-A+A+A+ area : 3000*3000 [mm]
-Light intensity : Standard: 700-1200 W/m2 / 100-1200W/m2 with optional masks
-Spectral range : 300-1200nm
-Light pulse length : 10ms
-Cycle time : 25s

2. Measurement system
-Electronic load : Active 4 quadrant E-load. Voltage range: -15 V to 420 V,
-Current range: -50 A to 50 A, Load mode (1st and 3rd quadrant): up to 15 kW peak Source mode (2nd and 4th quadrant): up to 1.2 kW peak
-Voltage ranges : 1.5 / 5 / 15 / 50 / 150 / 420 V
-Current ranges : 0.15 / 0.5 / 1.5 / 5 / 15 / 50 A
-Irrad. ranges :　0.015 / 0.05 / 0.15 / 0.5 / 1.5 / 5 V (4 irradiance measurement channels)
　 -Electrical accuracy　:　0.05 %, k=1　FSR, garanteed for 1 year on V, I, G ranges
　 -Repeatability　(stdev; k=1) for　standard 60/72 cells　module　:　<0.05% for Isc and Voc、<0.1% for Pmax and FF
　 -Repeatability　(stdev; k=1) for　half/quarter/shingl-ed　cell module　：<0.1% for Isc and Voc、<0.25% for Pmax and FF　
-ADC resolution　:　16 bits
-Irradiance sensor　:　mono-Si encapsulated monitor cell (20x20mm)
-temp.sensor　：Type = Infrared、Range = -100…+100°C、Accuracy = +/-1C°
-Acquisition points　:　5us/point max.　4096 points max.
-Traceability of　calibration　:　METAS (Swiss metrology office)

3．Options
-Low Irradiance masks (100 to 800 W/m2)
-Spectral Response filters (400 to 1100nm)
　-WPVS Reference cells Transimpedance amplifier.
　-FAT - Before shipment with or without customer :　Spectrum measurement、
IV curve、Long Temporal Instability (LTI)、Irradiance uniformity (64 points)、
Repeatability (20 measurements)
-SAT - At customer site : IV curve、Long Temporal Instability (LTI)、Irradiance uniformity (64 points)、Repeatability (20 measurements)
