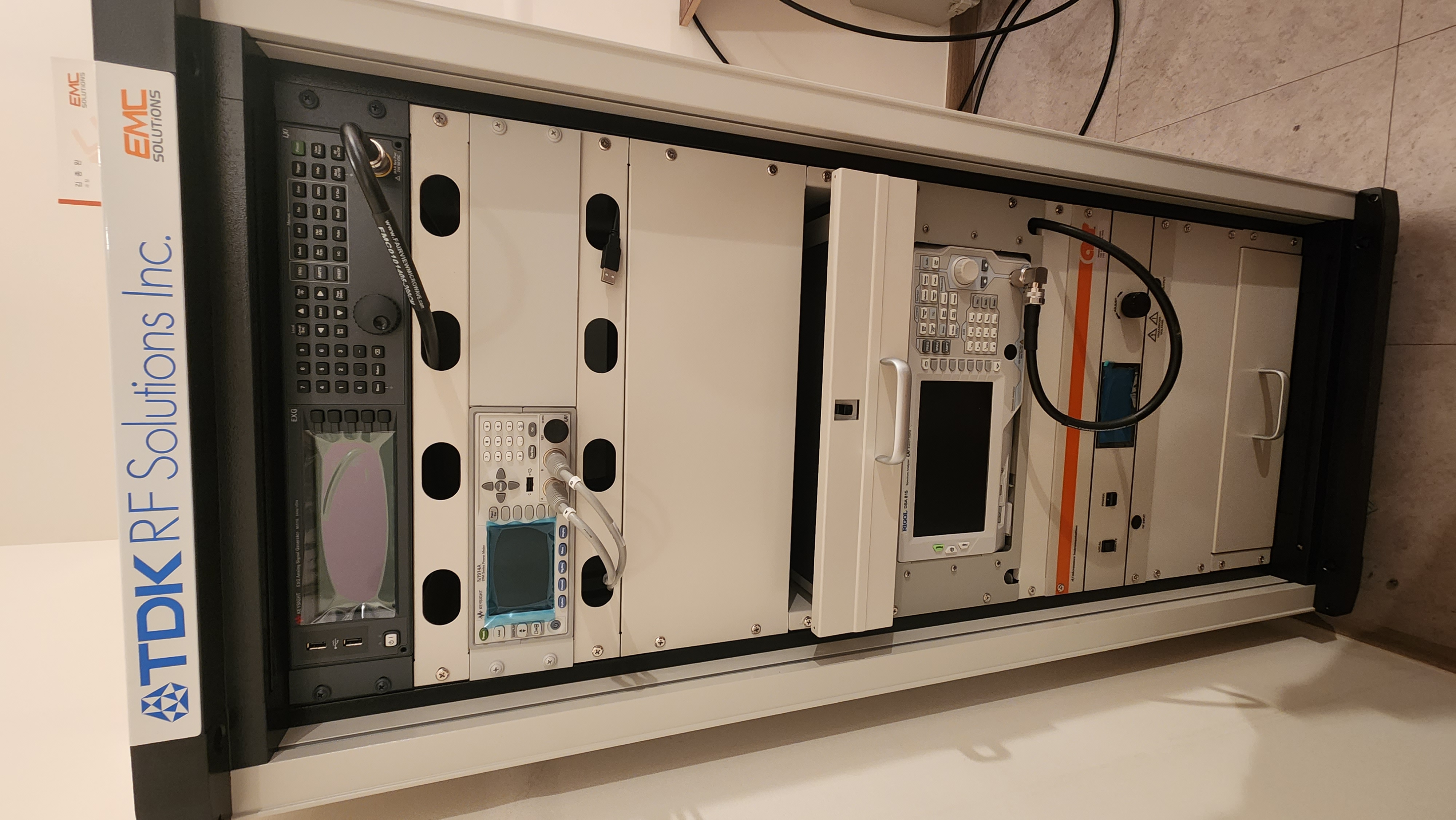

1. Signal generator
■ Frequency range : 9 kHz to 1 GHz
■ Dwell time : 100us to 100s
■ Settable range : +30 to –144 dBm
■ Attenuator step : 0 to 130 dB in 5 dB steps
■ Modulation : AM, FM, Phase Modulation, Pulse Modulation
1. RF power amplifier and coupler
■ Rated output power : 100 W (min.)
■ Frequency range : 9 kHz to 400 MHz
■ Gain : 50 dB (min.)
■ Gain adjustment : 20 dB (min.)
■ VSWR : 2.0 : 1 (max.)
■ Dual directional coupler : 9 kHz to 1 GHz , 250W (max)
2. Power meter and sensor
■ Freq. range : DC to 110 GHz (meter)
9 kHz to 6 GHz (sensor)
■ Num. of channels : 2 channels
■ Power range : -60 dBm to 20 dBm
3. Signal analyzer
■ Freq. range : 10 Hz to 3.6 GHz
■ Sweep time : 1 us to 6000 s (zero span)
1 ms to 4000 s (Span≥10 Hz)
■ Sweep point : 1 to 40001
■ Attenuator range : 0 to 84 dB (1 dB step)
4. Current injection probe
■ Frequency range : 10 kHz to 400 MHz
■ Internal diameter : 40 mm
■ External diameter : 127 mm
■ Max. input power : 200 W
■ Calibration Fixture : 1ea
5. Current monitoring probe
■ Frequency range : 10 kHz to 400 MHz
■ Internal diameter : 40 mm
■ External diameter : 80 mm
■ Connector type : N(f)
■ DC to 400Hz : 200 A
■ RF(CW) : 2 A
■ Peak pulse current : 100 A
6. Test software : included (1 copy)
7. Test accessories
■ Attenuator : included
■ RF load : included
■ Calibration kit : included
■ System rack and cables : included
