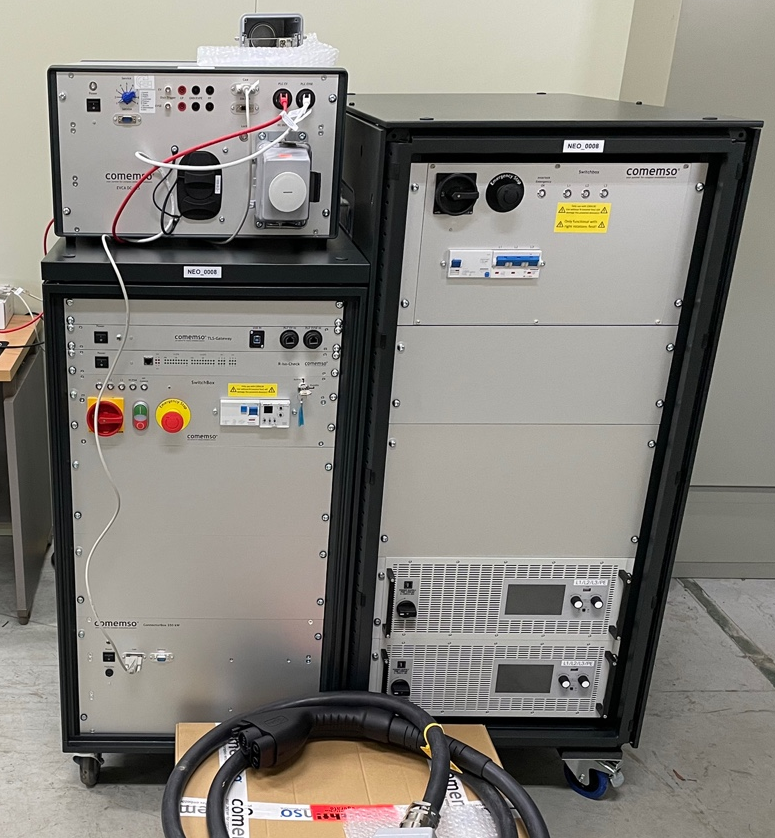

A. DC – CCS suitcase
ㅇ TLS-Gateway extension 1set
ㅇ DC CCS1 type (in accordance with IEC 62196 series)
ㅇ Table top system case
ㅇ DC Voltage range: 1 000 VDC max
ㅇ DC Current range: 600 A max
ㅇ DC power rating: 400 kW max
ㅇ DC CCS combo 1 cable 포함
ㅇ EV <-> EVSE 간 PLC-Sniffing (HW)
- deteting SLAC and PLC messages between EV and EVSE without creating time delays
ㅇ PLC frequency measurement range : (2~30) MHz
ㅇ Man in the middle 기능 지원(EV – EVSE 간 analyzing)
B. DC load
ㅇ TLS-Gateway extension 1set
ㅇ R-iso device 2 ch
ㅇ 60 kW 급 Connector box
ㅇ 60 kW 급 Connectio cable
ㅇ DC powersupply and loader (bi-directional)
- Voltage range: 1 000 VDC max
- Current range: 80 A max
- Power range: 50 kW
ㅇ System integration rack case

C. DC software
ㅇ DC CCS monitoring panel
- integration software CANoe by Vector informative
- available to expand for CharIN interface
- visualization of SLAC and PLC messages as WireShark traces
ㅇ DC CCS manipulating gateway
- activation/deactivation 기능 지원
- EVSE side: SLAC and PLC parameter can be set
