monti antonio spa
mod. 200 vaccum
11년
주장비
생산
기계가공·시험장비 > 섬유기계장비 > 달리 분류되지 않는 섬유기계장비
공동활용서비스
2022-07-26
117,000,000원
기관의뢰 직접사용
고정형
시간별
[EA] 30,000원

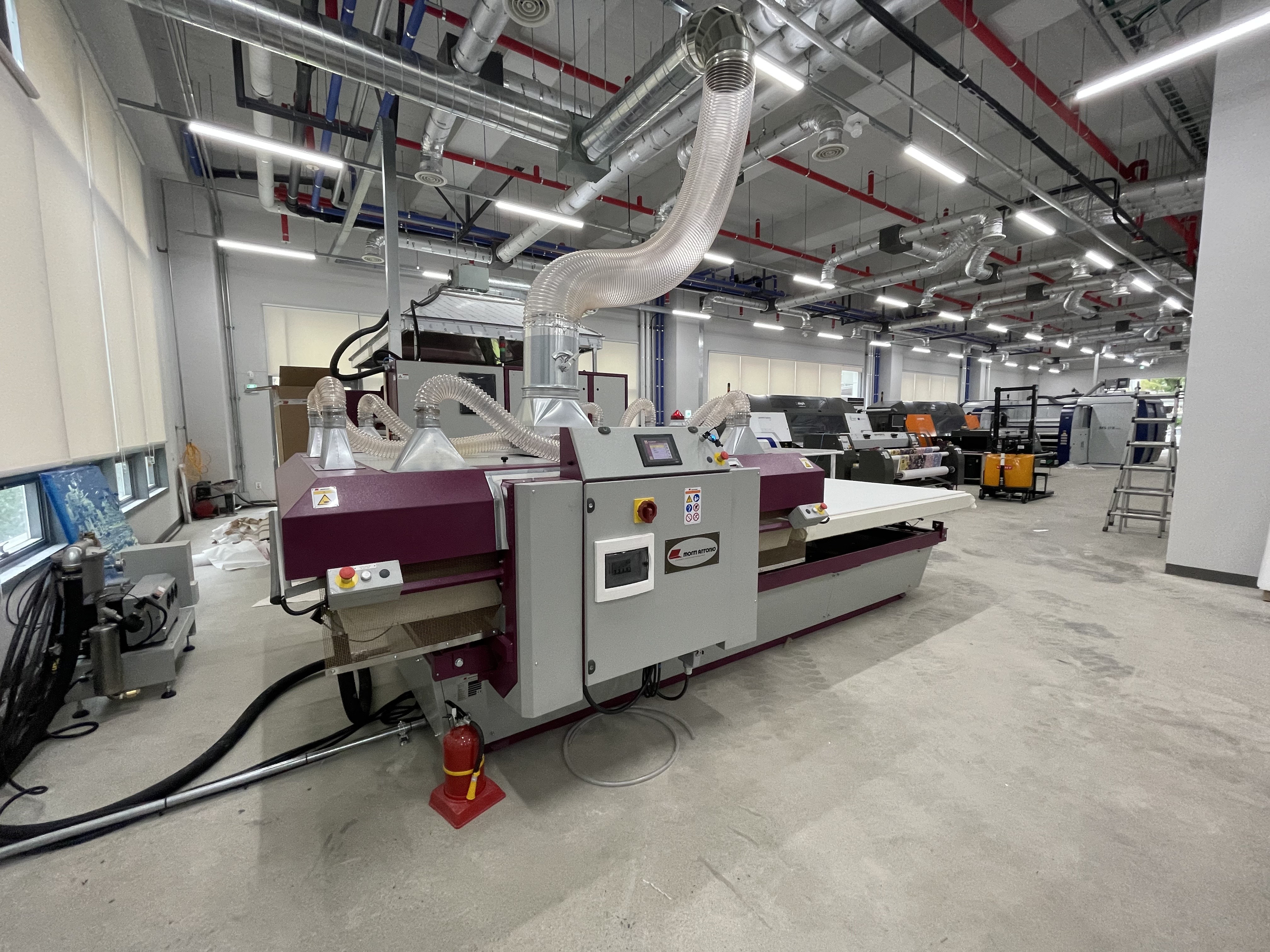

Mod. 200 MAXIPRINTER is a large
press for flat sublimation thermoprinting.
The extremely interesting technical innovations
of the NEW version have been combined
with all the advantages and reliability of
the old, which, for years, have ensured the
worldwide success of this model. The multifunctions
offered by this printer make it
ideal for application in the textile industry
(in particular for printing sports-wear, pullovers,
carpets, hosiery and accessories), as
well as for printing tiles, glass and metal
articles (doors, profiles, blackboards, trays,
etc.). As the machine incorporates a double
work surface (on which the material to be
printed and the printing paper itself is placed),
and as an electrically heated upper
plate moves alternately from one work surface
to another, production down-time is
avoided.
Dimensions of printing surface (mm) 2250x1600
Total power installed (Kw) 28,5
Medium consumption (Kw) 19
Power supply 230 volt 3Ph 50/60Hz
400 volt 3Ph 50/60Hz
Maximum electrical input (Amp) a 230 volt 71,6
a 400 volt 41
Resistances power for heating 22,5+10%= 25
upper plane (Watt) n°15 Res. da 1500 Watt
Pressure pump motor power (Kw) 2,2
Translation motor power (Kw) 0,75
Transformer (Kw) 0,5
Maximum pressure oil (Bar) 90
Plate temperature (°C) 230
Height of working plate (mm) 850
Net weight (Kg) 3150
