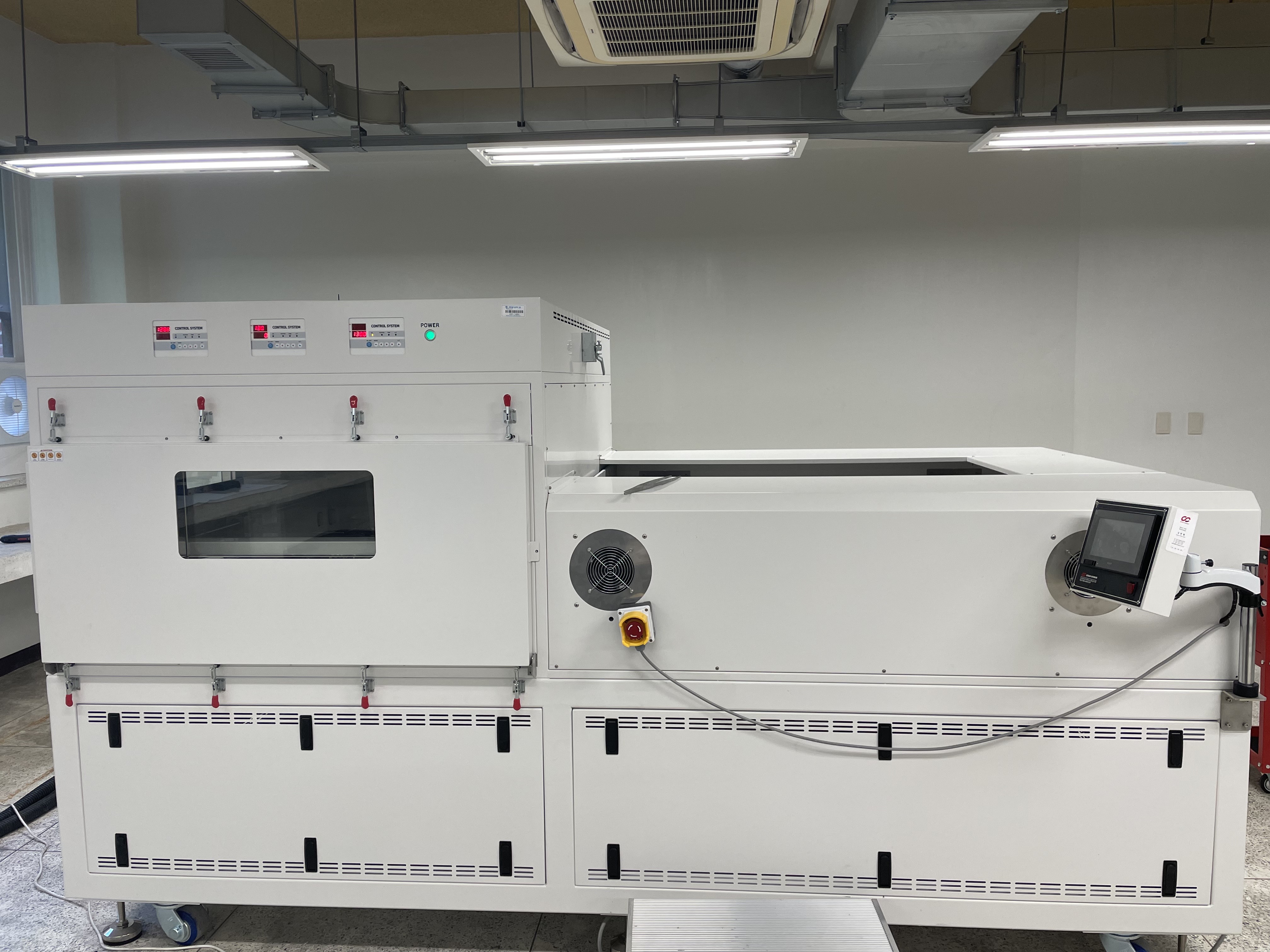

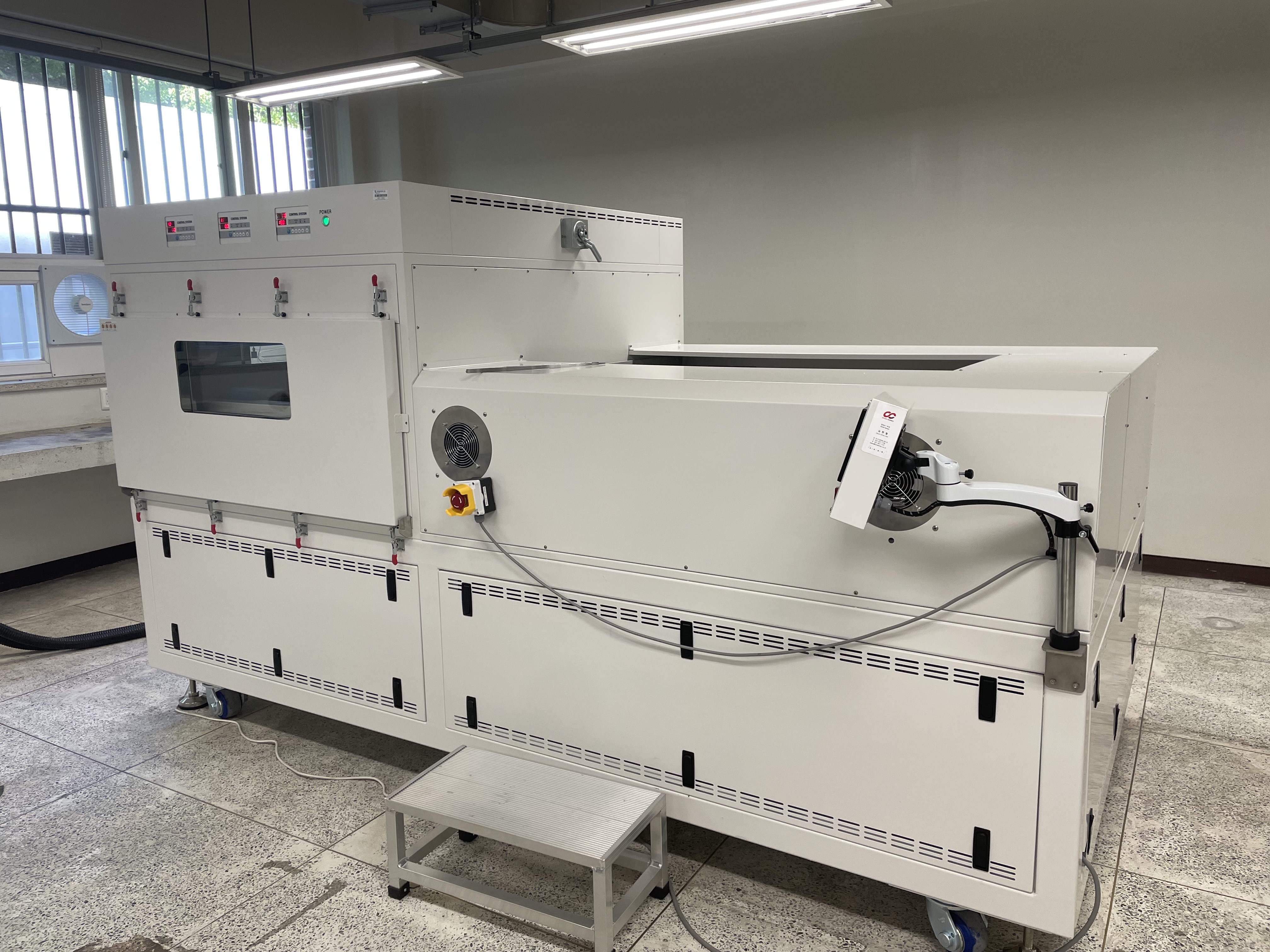

1. MAIN BODY
SAMPLE STRETCHING : MAX. 500 x 500mm
OVEN ZONE : 1100x1100x600mm (WDH)
TEMP.RANGE : MAX. 200℃
TEMP. ACCURACY : ± 5 ℃
TEMP. SENSOR : PT-100, 8ea
TEST SPEED : 0.1 ~ 300mm/sec
SAMPLE SIZE : MIN. 100 x 100mm
STRETCHING RATE : 5 TIMES (450mm)
SAMPLE GRIP : SIDE W10mm x 7 ea, screw type
CLAMP JOIN : X-Y MANUAL CLAMP TYPE 28ea
GRIP PRESSURE : MAX. 5Kg.f/㎠
MOTOR : SERVO MOTOR 400W , 2 SET
MOVING SCREW : TM SCREW TYPE
HEATER : IR HEATER 1Kw, PLATE HEATER 4 POINT 6 Kw, AIR 4 POINT HEATER 9Kw
SIGHT GLASS : 500 x 200mm
DIMENSION : 3000 x 1300 x 1500mm (WDH)
POWER : AC220 / 380V 60Hz 100A 3상 4선식

2. CONTROLLER PART
FULL PLC CONTROL TYPE
DISPLAY : 10“ TOUCH SCREEN
CONTROL: TEMP. STROKE , SPEED
X-Y AXIS SELECT S/W, EMERGENCE S/W
PID TEMP. CONTROLLER : 8set , DISPLAY 8ea
