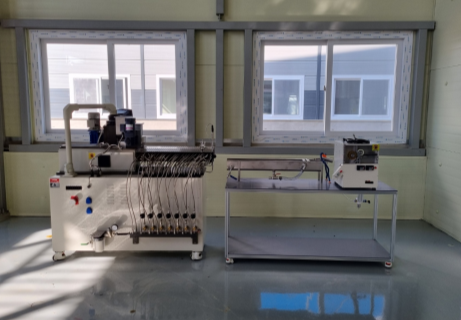

ㅇ TEK30 TWIN SCREW EXTRUDER
- type : co-rotating twin screw
- screw size : 30 mm x L/D 40
- 10 block barrels : feed barrel(1ea), bent barrel(1ea), closed barrel(8ea), plate barrel(1ea)
- temp control range: less than 300℃
ㅇ strand die & head unit
- type: 45 degree T-type
- holes:４ｘ３
- heating zone: 1
ㅇ main motor & temperature panel
ㅇ water bath
- size : 2000Lx 250W x 250H
ㅇ air wiper
ㅇ K-50 PELLETIZER
- cutting size： ３mm x 3mm
- rotor knife size : 130 x 64L x 21NT
- line speed: 70 m/min
ㅇ 펠렛성형압출기 부대 장비
- resin feeder, vacuum pump unit, barrel section water cooling unit
