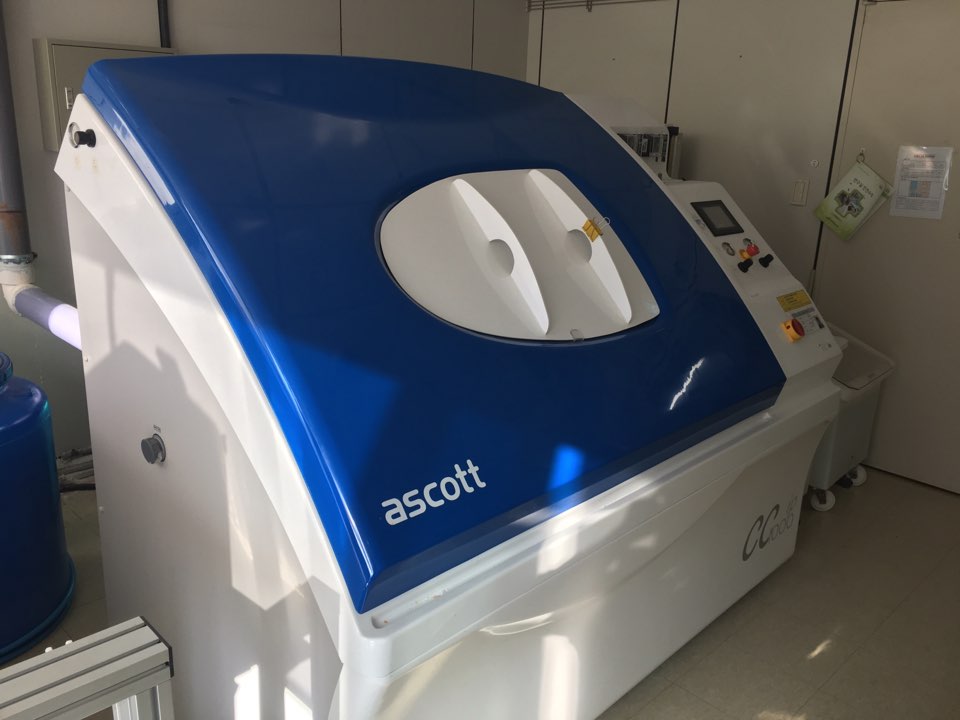

1) Test Chamber
- Material : Rustless Material
- Dimensions(Internal) * Width : 1,300 mm * Depth : 980 mm * Height : 1320 mm * Volume : 1000L

2) Specification
- Working Temperature Range : ？40 to (50±2) ℃
- Working Humidity Range : (20 ~ 98) % R.H
- Interface between CCT chamber and Refrigeration
- Salt Spray(Vertical down) : standards, such as GMW14872 & SAE J2334
- Water fog humidity : Water Fog (95∼100) % R.H GM4465, ASTM D1735
- Wall Wash : standards such as Renault D17 2028
- Salt solution reservoir low level alarm
- Sprays salt water : Sprays salt water onto the samples under test
- Immersion Test System : Immersion Test 50℃ for 1000L chamber
SO2 Gas Dosing System : ASTM G85 A4 SO2 Gas dosing System
